FMS 1:10 Canyon RS Designed for Realism And Built for Performance RC Crawler Adventure 2.4GHz RTR

FMS 1:10 Canyon RS Designed for Realism And Built for Performance RC Crawler Adventure 2.4GHz RTR

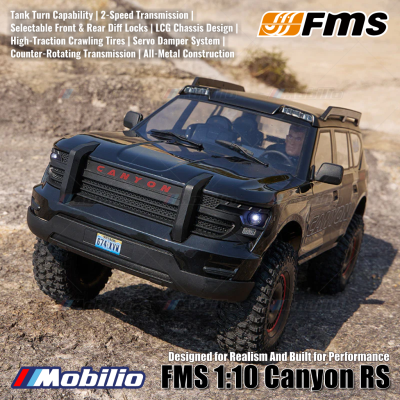

The FMS CANYON is a rugged off-road machine inspired by Dubai’s futuristic police supercar. Designed for realism and built for performance, it features a high-strength PC body shell with durable nylon roof panels, bumpers, mirrors, and door handles. Clear windows reveal a detailed driver figure and a fully replicated cockpit interior. A synchronized LED lighting system includes functional headlights, turn signals, and tail lights with customizable light buckets for scale accuracy. The body attaches using FMS’s patented magnetic quick-mount system, which automatically connects power and lighting functions for easy setup. Underneath, the reinforced nylon chassis offers outstanding rigidity and impact resistance. Power comes from a two-speed transmission with reverse, metal gears and bearings, and portal axles that deliver maximum ground clearance. Finishing touches include servo-saver protection, rear brake discs and functional DIG mode for ultra-tight, tank-style turns.

Top Highlights

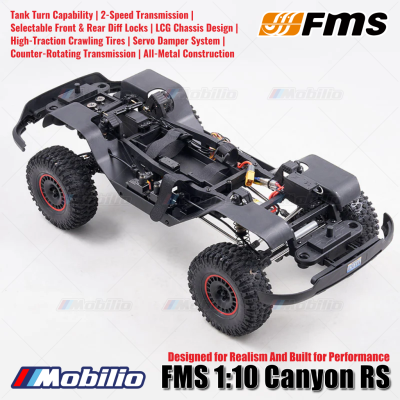

- LCG chassis (new design)

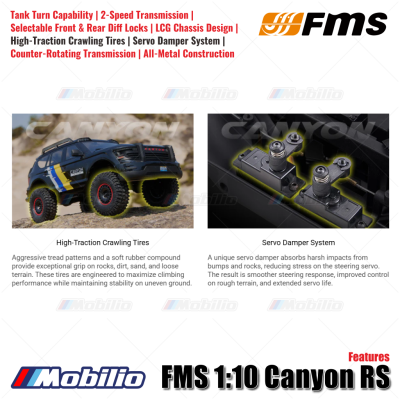

- Servo shock absorption protection device (new design)
- Innovative DIG function with remote-controlled single rear wheel lock (patented)
- Quick-release structure (patented)
- Front and rear portal axles
- High-traction crawling tires
- Remote-controlled full LED light system
- Realistic scale interior with fine details

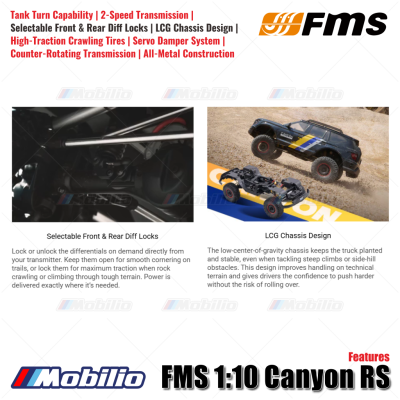

- Remote-controlled locking front and rear differentials
- Two-speed transmission

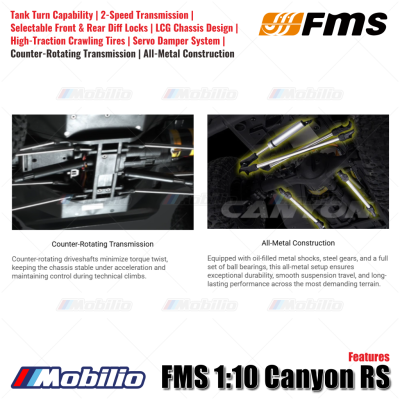

- Counter-rotating driveshafts
- Oil-filled, all-metal shock set
- Full-metal gears with plastic spur gear
- Full set of ball bearings
- Independent ESC
- Includes two decal sets for user customization

Specification :
- Transmitter : MG11
- Receiver : FS-R11P-BS
- Light Control : DB01
- Recommend Battery : 2-3S
- Motor Type : 550 Brushed Motor 32T
- Motor Gear Pinion : 14T
- Motor Gear Pitch : M0.6
- Spur Gear Pinion : 33T
- Spur Gear Pitch : M0.6
- ESC : Hobbywing 1060
- Steering Servo : 25KG Steering Servo*1
- Shift/Differential Servo : High/low speed servo*1, Front/Rear Diff Servo*2, DIG servo*1
- Product Size : 580*260*256mm
- Wheelbase : 325mm
- Tread : 208mm
- Approach Angle : 38°
- Departure Angle : 39.5°
- Breakover Angle : 45°
- Ground Clearance : 60mm
- Steering Type : 2WS
- Maximum Steering Angle : 42°
- Maximum Climbing Angle : 40°
- Tire Size (Diameter & Width) : 116*42mm
- Wheelhub Size (Diameter & Width) : 56*32mm
- Wheelhub Adaptor Size : 12mm
- Bearing : 36pcs
- Drive System : 4WD
- Waterproof Class : Splash-proof
- Battery Compartment Size : 156*48mm
- Maximum Speed : 15KM/h
- Maximum Control Distance : 150m

What’s in the Box:
1 x FMS 1:10 Canyon RS
1 x 2.4GHz MG11 Transmitter
1 x FS-R11P-BS Receiver (installed)
1 x 550 Brushed Motor 32T (installed)
1 x Product Manual

Needed to Complete:
4 x AA Batteries for Transmitter
Battery & Charger for Kit (Recommended 2S or 3S 5000mAh XT60 plug x1)

Note to Buyer:
This product is recommended for ages 14 and up. Children under 14 should use it only under adult supervision.

Contact our customer service if you need more information.
