Hobbywing XeRun AXE Plus R3 ESC Brushless FOC Sensored #30113201 for 1/10 1/8 1/6 RC Rock Crawler

Hobbywing XeRun AXE Plus R3 ESC Brushless FOC Sensored #30113201 for 1/10 1/8 1/6 RC Rock Crawler

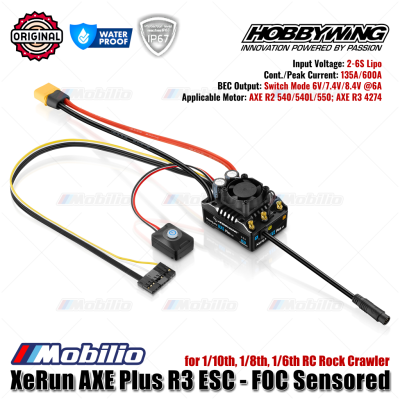

- Product Name : XERUN AXE PLUS R3
- Product Number : 30113201

Type
- Scale : 1/10th,1/8th,1/6th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : Waterproof

Specifications
- Cont./Peak Current : 135A/600A
- Input Voltage : 2-6S Lipo
- BEC BEC Output : Switch Mode 6V/7.4V/8.4V @6A

Wires & Connectors
- Input Wires : Black-12AWG-265mm*1 Red-12AWG-265mm*1
- Output Wires : NO
- Input Connectors : XT60
- Output Connectors : No

Fan
- Size : 25*25*10mm
- Voltage Range : 6-8.4V
- Powered by : BEC

ESC Programing via
- SET Button on ESC : Not Supported
- LED Program Box : Not Supported
- LCD G2 Program Box : Not Supported
- LCD PRO : Not Supported
- OTA Programmer : Not Supported
- Program Port : Built-in bluetooth

Data Recording
- Extreme value : Supported

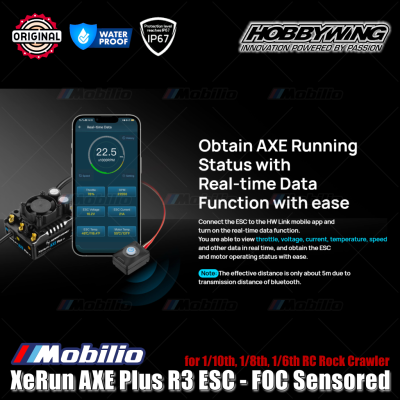

- Real-time Data : Supported
- Built-in Historical Data (Graph) : Not Supported
- External OTA Historical Data (Graph) : Supported

Firmware
- Firmware Upgrade : Supported

Size & Weight
- Size : 49.5*37.9*32.8mm(Height with fan)
- Weight : 126.5g(Including the weight of input line)

Applications
- Motors : Only support XERUN AXE R2/R3 motor
- Vehicles : 1/10th,1/8th,1/6th Rock Crawler

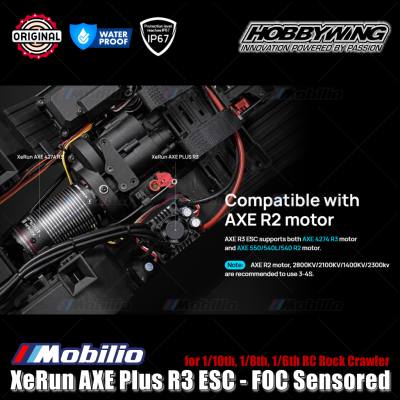

- Applicable Motor : AXE R2 540/540L/550
AXE R3 4274

Contact our customer service if you need more information.
