Hobbywing EzRun MAX10 G2 ESC Brushless Sensored 80A #30102604 / 140A #30102603 Waterproof for RC 1/10 Short Course Truck and Monster Truck

Hobbywing EzRun MAX10 G2 ESC Brushless Sensored 80A #30102604 / 140A #30102603 Waterproof for RC 1/10 Short Course Truck and Monster Truck

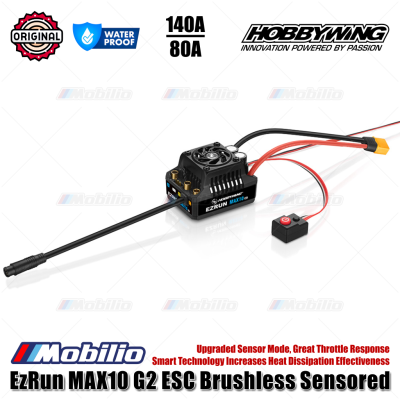

Product Name : EZRUN MAX10 G2-140A #30102603 / EZRUN MAX10 G2-80A #30102604

Type
- Scale : 1/10th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : Waterproof

Specifications
- Cont./Peak Current : 140A/880A / 80A/520A
- Input Voltage : 2-4S Lipo (140A) / 2-3S Lipo (80A)
- BEC Output : 6/7.4V,5A

Note: 7.4V voltage can be output
only when input ≥ 3S Lipo

Wires & Connectors
- Input Wires : Red-12AWG-150mm*1 Black-12AWG-150mm*1
- Input Connectors : XT60
- Output Connectors : 4.0mm Gold (female)

ESC Programing via
- SET Button on ESC : No
- LED Program Box : Supported
- LCD Program Box : Supporte(G2)
- OTA Programmer : Supported
- Program Port : Separate

Fan
- Size : 30x30x10mm (140A) / 25x25x10mm (80A)
- Voltage Range : 5-7.4V
- Powered by : Powered by BEC

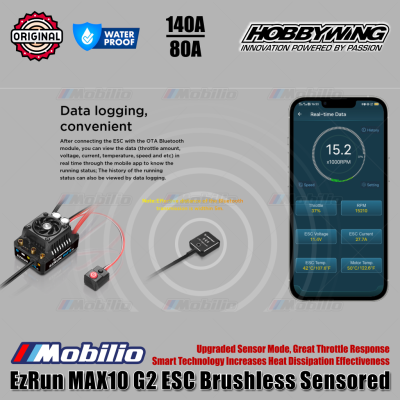

Data Recording
- Extreme value : Supported(LCD)
- Real-time Data : Supported
- Built-in Historical Data (Graph) : Not Supported
- External OTA Historical Data (Graph) : Supported

Firmware
- Firmware Upgrade : Supported

Size & Weight
- Size : 53mm*39.5mm*37.2mm
- Weight : 120g(w/Wires)

Applications
- Motors : SL BL Motors / SD BL Motors
- Vehicles : 1/10th Short Course Truck,Truck and Monster Truck (140A)
1/10th On-road/Off-road Short Course Truck(Light-duty) (80A)
- KV Rating/T Count : With 3S Lipo: KV ≤ 4000 3665 size motor;
With 4S Lipo: KV ≤ 2600 4268 size motor (140A)
With 2S Lipo: KV ≤ 6000
With 3S Lipo: KV ≤ 4200 3652 size motor (80A)

Contact our customer service if you need more information.
